TM Body
- 25ft Bespoke traffic management body with cone wells.
- Galvanised steel sub frame
- Heavy duty galvanised steel front gantry.
- Aluminium side rave
- 18mm heavy duty phenolic non-slip flooring.
- High grip yellow coating applied around cone wells
- Sliding side panels secured with anti-luce fasteners to allow access to the cone wells.
- Removable and sliding Work at height rails.
- Load lock pole system, 2 x load lock poles for front of body and 2 x load lock poles for rear.
- 3 section front sign rack, accessible from nearside & offside with single action retainer.
- Floor level cheese wedges to retain 610 arrow signage.
- Nearside & offside 1100mm wide cone wells c/w access post offering 3- points of contact.
- Non-slip high visibility yellow plastic mesh cone well covers.
- Cover to slide down the back of the well.
- Cone wells fitted with non-slip high visibility yellow plastic mesh floor.
- Nearside & offside under body mounted sand bag storage boxes with drop down fronts.
- Grab handles and cab access steps powder coated in yellow.
- Rear lockable storage box.
- All foot well and main floor edges to be fitted with high visibility yellow grit tape.
- Safety signage including safe loading, safe access and egress and pinch points
Electrics
- All LED lighting is Reg. 65
- High level mounted LED light bar.
- Reverse alarm.
- Front and rear mounted LED strobes.
- Two LED work lights mounted on front sign rack.
- Full “Halo type” surround lighting.
- LED lights and emergency stop switch in the cone wells.
- LED lighting in the sign rack.
- LED lights either side of body in front of the cone well to aid working and reversing.
- Under body and cone well LED lighting.
- FORS compliant safety system including, close proximity blind spot side scan system with audible and visual warnings and blind spot camera.
- Vehicle turning left warning system.
- Recordable multi (6) camera system with forward, rear and working area views with live streaming and vehicle tracking.
- DVS upgraded system, effective from October 28th 2024 for working within the M25.
Crash Cushion

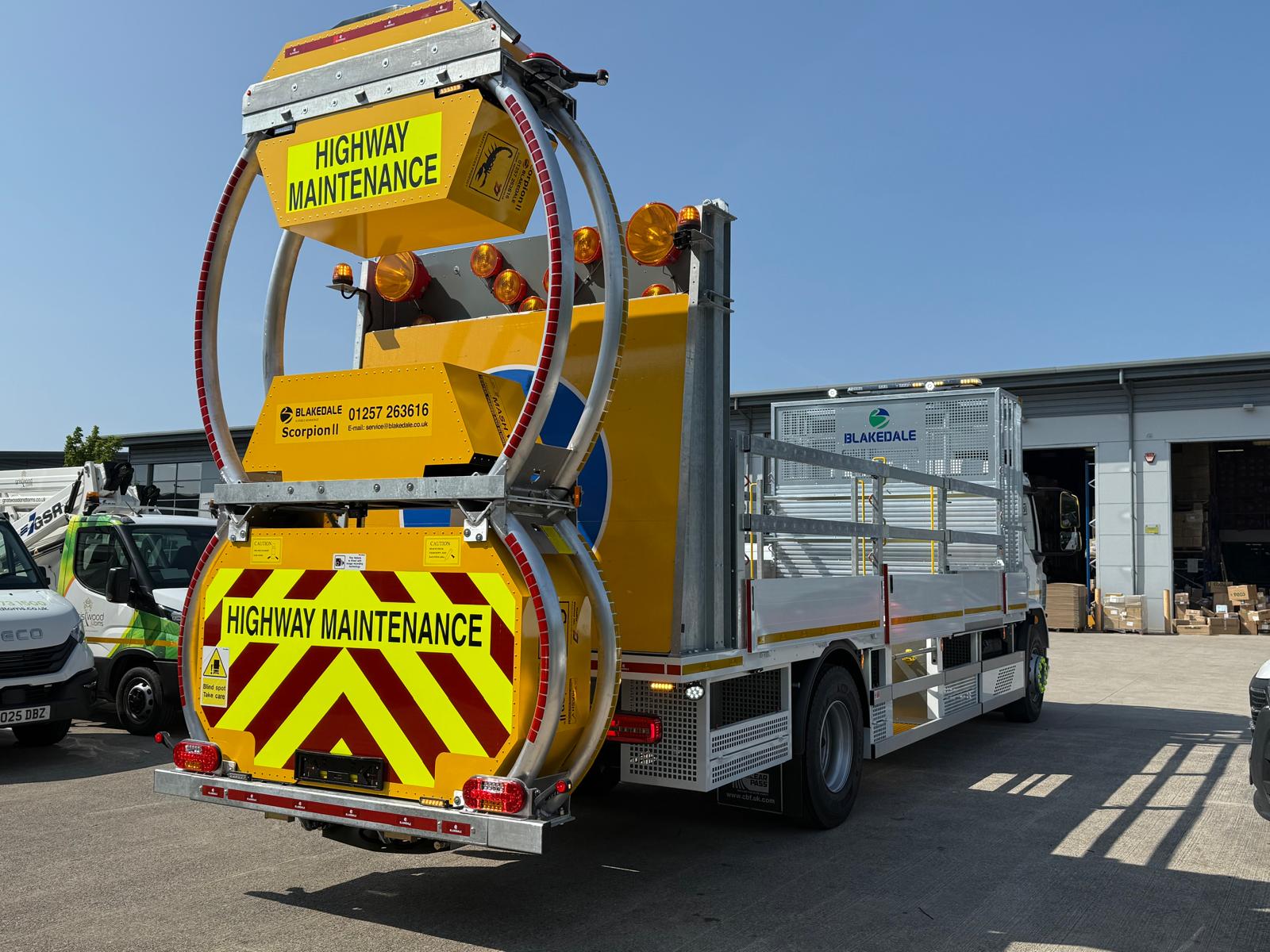

- Traffix Scorpion II crash cushion MASH tested and approved at 110 Km/h (70mph)
- Vertical lift LED light arrow board.
- 2 x LED work lights mounted on signboard.
- Auto brake system.
- 2 x Single LED amber beacons mounted to the rear corners of the light arrow board.
- Chapter 8 compliant rear chevron markings and Highway Maintenance decal.
- Prominent sticker warning cyclists of the danger of passing the vehicle on the inside.
Conditions of Sale
Vehicles are sold as seen.
Quotation is valid for 30 days and is subject to our standard terms and conditions.
Prices exclude VAT.
